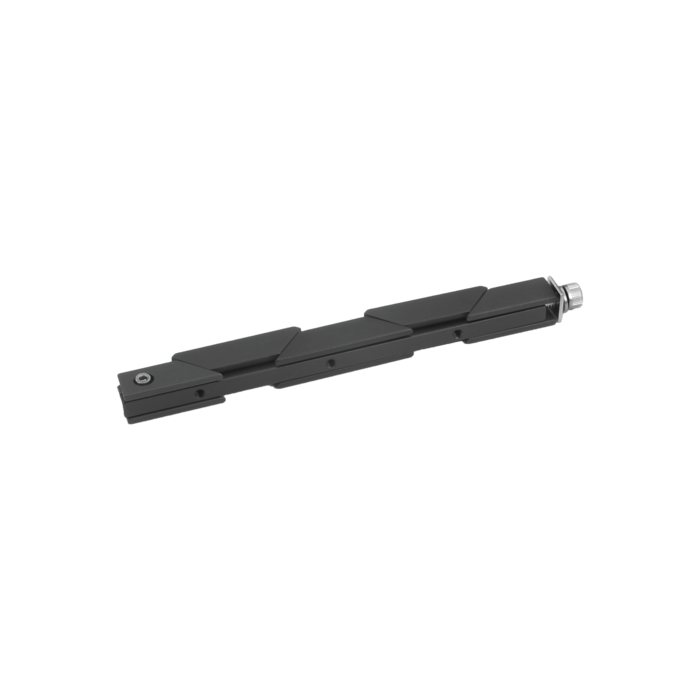

280 Card-Lok

nVent Schroff, The Series 280 features a larger profile design and is better suited to accommodate heavier Board Module Assemblies, while the shafted design provides more uniform clamping force over the length of the Card Lok, while maintaining wedge and body alignment for easier installation. Available with gold chem film, clear chem film, black anodized, hard black anodized, or electroless nickel plating Length 96.5 mm to 325 mm, 12.7 mm increments Min expansion 11.68 mm 5 segment, shafted design DSCC CID 59789 Profile 9.27 mm x 9.65 mm Screw actuated Weight 2.18 g/cm For cold wall applications Average clamp force (4.80", black anodized) = 517 lbs Torque limiting option available; ideal for 2nd level maintenance
