19" SYSTEMS FROM nVent SCHROFF

19" Cabinets, Racks & Subrack Systems

nVent SCHROFF offers high-quality 19-inch electronic cabinets, racks, and subrack systems engineered for industries that demand reliable, secure, and well-organized enclosures. Designed to protect sensitive electronics, our solutions ensure durability, optimal airflow, and efficient cable management.

Trusted worldwide, nVent SCHROFF 19" systems are widely used in data centers, industrial automation, telecommunications, transportation, aerospace, and defense. Whether you need robust protection from environmental factors or flexible configurations for complex equipment, our cabinets and racks deliver performance, reliability, and scalability.

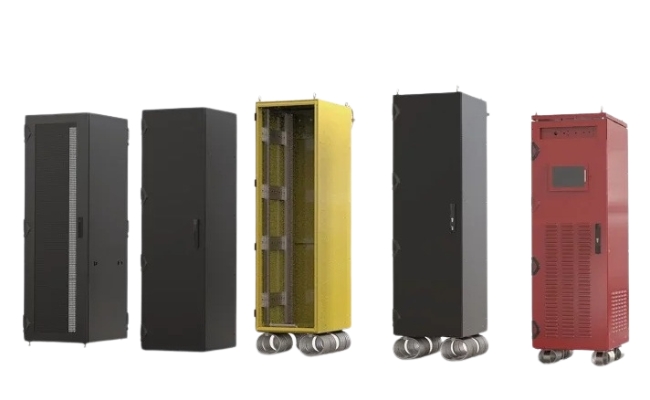

19" Electronic Cabinets and Racks

Standardization and Compatibility

The 19-inch rack standard is the industry benchmark for mounting electronic equipment such as servers, network devices, and audio-visual components. nVent SCHROFF 19" cabinets and racks comply with IEC 60297 and ETSI standards, ensuring full compatibility with a wide range of equipment. This makes it easy to integrate hardware from different manufacturers while maintaining reliability and consistency.

Cabinet Options and Customization

nVent SCHROFF offers a broad portfolio of 19" cabinet solutions, including both modular and welded designs. Cabinets can be customized in height, depth, and width to meet specific application requirements. Features such as vented doors for improved airflow, secure locking systems, and flexible mounting options provide enhanced thermal performance, physical security, and efficient cable management.

Thermal Management

Effective thermal management is crucial for equipment longevity and performance. SCHROFF cabinets and racks are engineered with advanced cooling solutions, ranging from passive ventilation with perforated panels to active cooling systems such as integrated fans and climate control units. These features help maintain safe operating temperatures and prevent costly downtime.

Cable Management Solutions

Organized cabling is essential for system reliability and serviceability. SCHROFF cabinets include a variety of cable management accessories, such as ducts, rings, and vertical or horizontal trays. These solutions keep wiring neat, reduce clutter, minimize signal interference, and simplify maintenance for complex installations.

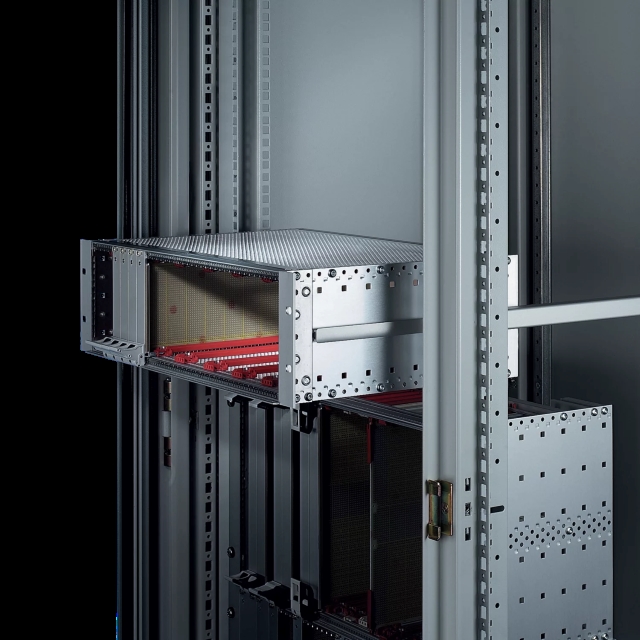

Subrack Systems

Modular Design for Flexibility

nVent SCHROFF subrack systems are built with a modular design, making them highly adaptable for diverse electronic applications. They provide reliable housing for PCBs, embedded systems, and custom electronics. Each system typically includes frames, card guides, and mounting hardware to ensure secure and organized placement of electronic boards.

EMC Shielding for Reliable Performance

Many SCHROFF subrack systems feature EMC (Electromagnetic Compatibility) shielding, protecting sensitive electronics from electromagnetic interference. This is critical in demanding environments such as telecommunications, aerospace, and defense, where system reliability and data integrity are essential.

Compliance with International Standards

SCHROFF subrack systems meet global standards, including IEC 60297 for 19" rack mount systems and IEEE 1101 for plug-in units. Full compliance ensures seamless integration with industry-standard enclosures, reducing modification needs, installation time, and overall costs.

Advanced Cooling and Ventilation

To maintain performance and extend equipment lifespan, SCHROFF subracks are engineered with effective cooling and ventilation options. Ventilated panels, integrated fans, and additional cooling accessories prevent overheating, making them ideal for high-density electronic applications.

Advanced Features for Specialized Applications

Seismic and Vibration Protection

nVent SCHROFF cabinets and racks are engineered for environments exposed to seismic activity or constant vibration, such as earthquake-prone regions, transportation hubs, and defense applications. Reinforced frames and secure mounting options provide maximum equipment stability and protection against shock and movement.

Outdoor and Harsh Environment Enclosures

For outdoor and industrial use, SCHROFF offers ruggedized and weatherproof enclosures designed to withstand extreme conditions. Built with corrosion-resistant materials, IP-rated protection, and dust-tight seals, these cabinets safeguard critical electronics from moisture, dust, and temperature extremes, making them ideal for telecommunications, energy, and infrastructure applications.

Network and Server Racks

SCHROFF also delivers high-performance racks for networking and server applications, with solutions optimized for data centers and IT infrastructure. Features include enhanced airflow for cooling, optimized cable access, and easy maintenance, ensuring minimal downtime and maximum uptime in high-density environments.

nVent SCHROFF Accessories and Services

Mounting and Installation Accessories

nVent SCHROFF offers a comprehensive range of cabinet accessories designed to improve installation, organization, and functionality. Options include shelf brackets, rail kits, cooling fans, cable management panels, power distribution units (PDUs), and grounding kits. These accessories ensure efficient operation, optimized airflow, and reliable power management within 19" cabinets and racks.

Custom Solutions and Engineering Support

Beyond standard products, SCHROFF provides customized enclosure solutions tailored to unique project requirements. Options include custom sizes, colors, materials, and finishes, allowing for flexibility across industries with demanding specifications. SCHROFF’s expert engineering team collaborates directly with customers to design solutions that address specific environmental, security, and operational challenges.

nVent SCHROFF Configurators

Configure 19" Systems and Cabinets Online

With the nVent SCHROFF online configurators, users can easily design and customize 19" electronic cabinets and systems to meet their exact requirements.

3D Cabinet Configurators for Varistar

nVent SCHROFF has introduced advanced 3D configurators to simplify the design process. Engineers and system designers can now configure custom Varistar electronic cabinets online, covering the complete Varistar series—including electronic, network, and seismic cabinets.

Wide Range of Options and Accessories

The configurators offer an extensive library of options, functions, and accessories, enabling tailored solutions for diverse applications. From airflow management to mounting hardware, the tools ensure accurate configurations that reduce errors, save time, and streamline the ordering process.

.
