RATIOPAC 3/4U 18SL PXIE GEN2
€9,180.00
Varenr
14579-043

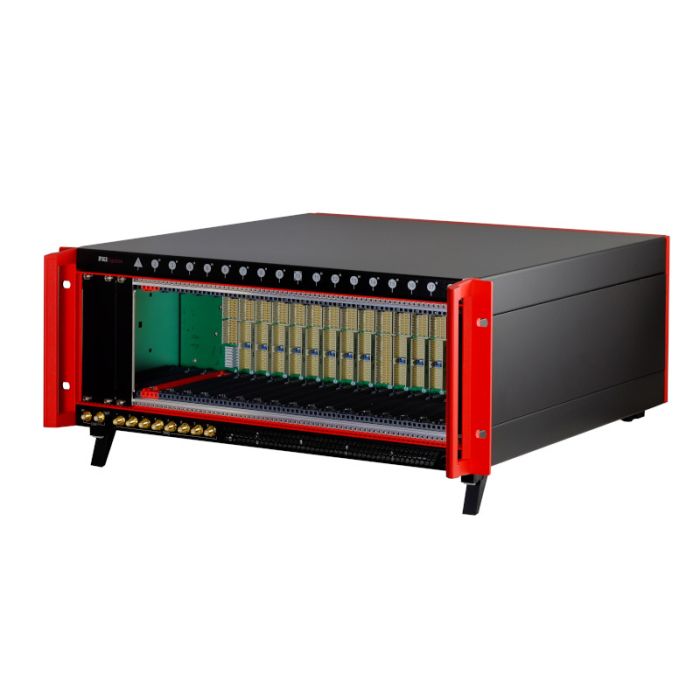

PXI Express System 4U 18 slots Gen2
- nVent Schroff PXI Express Desktop Chassis, 4 U, 84 HP, with handles and 19“ mounting brackets
- 1 PXI Express System Slot with 16 HP width, 1 PXI Express Timing Slot and 16 Hybrid Slots
- Gen 2 PCIe switching with a four-link (4x1) System Slot
- Powerful cooling concept with low fan noise, 50 W per slot @ 15K temperature increase
- Air flow from bottom to rear with temperature controlled fans; Integrated Chassis Monitoring Modul (CMM)
- Wide range AC input with mains switch on the rear side, power push button on the front (top) Rear panel external 10 MHz clock inputs/outputs
- Backplane Type: PXI Express, 4 Link Configuration
- Power per Slot: 50 W
- Input Voltage AC: 100 – 240 V
- Airflow Direction: Bottom to Rear
- Power Supply Included: Yes
- Rear I/O: No
- Complies With: PXISA PXI-5 R1.1
- PXI Express Timing Slot Quantity: 1
| Varenr | 14579-043 |
|---|---|
| Opprinnelsesland | Germany |
| Manufacturer | Schroff |
| Normal Delivery time | Call us |
| Høyde i U | 4 |
| Dybde i mm | 355 |
| EL-nummer | 4036088226922 |
| UNSPSC | 85480090990 |
| Datablad | click here |
| Produktets hjemmeside | click here |
