Bocube & Bocube Alu – robust enclosures with smart access and modern design

BOPLA Bocube & Bocube Alu – enclosures for demanding applications

Whether you need a lightweight, impact-resistant plastic enclosure for outdoor use or an extremely robust aluminium enclosure for industrial and harsh environments, the BOPLA Bocube family offers a well-engineered combination of functionality, modern design, and reliable protection.

Bocube and Bocube Alu are designed to protect sensitive electronics against moisture, dust, and mechanical stress, while maintaining a clean, professional appearance—ideal even for visible installations. With protection ratings up to IP66, IP67, and IP69 (Bocube Alu), these enclosures meet the highest requirements for durability and operational reliability.

ETM4U – your partner from concept to series production

As an official BOPLA partner, ETM4U supports you throughout the entire process:

• Expert advice and selection of the right Bocube or Bocube Alu model

• Customization for your application (machining, mounting, interfaces, HMI integration)

• Support for prototyping, design-in, and series production

Looking for robust, IP-rated enclosures for demanding environments? ETM4U helps you turn your idea into a reliable, production-ready solution.

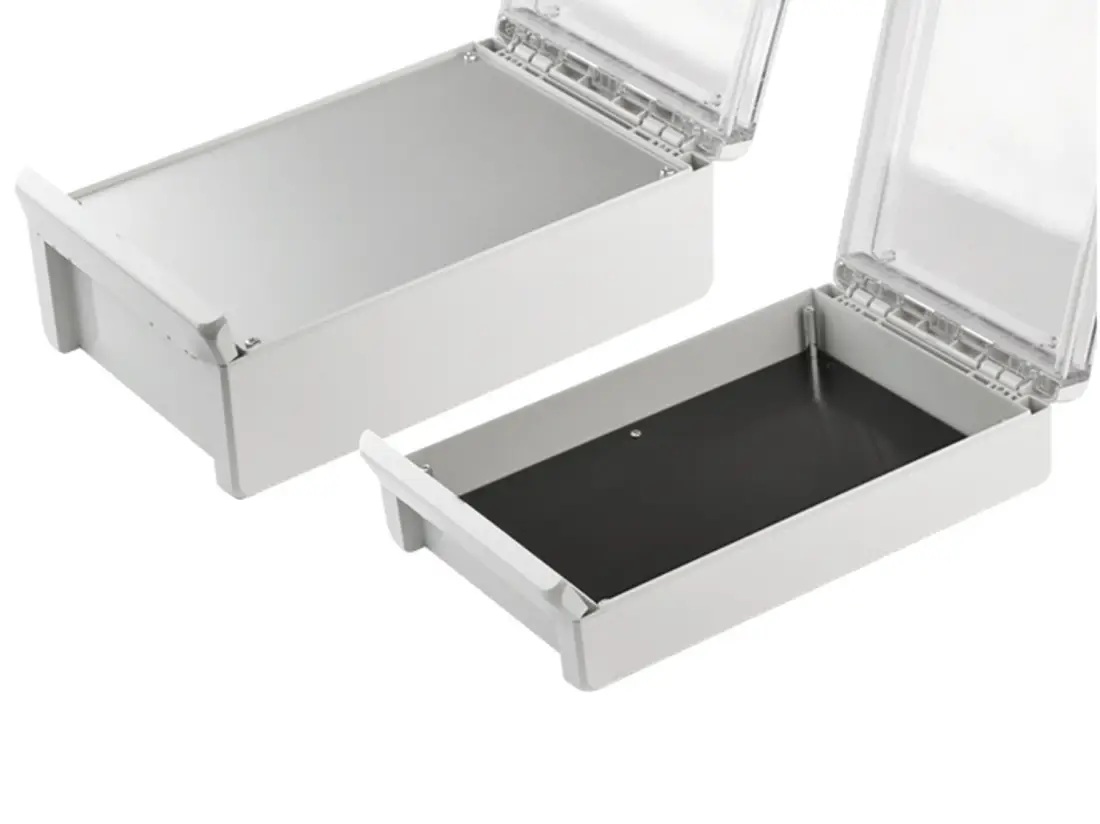

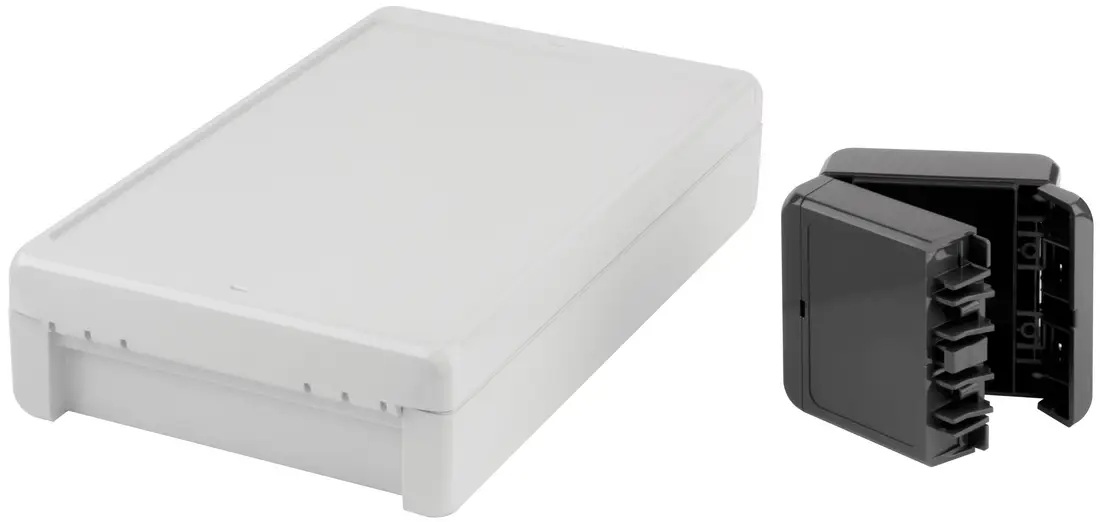

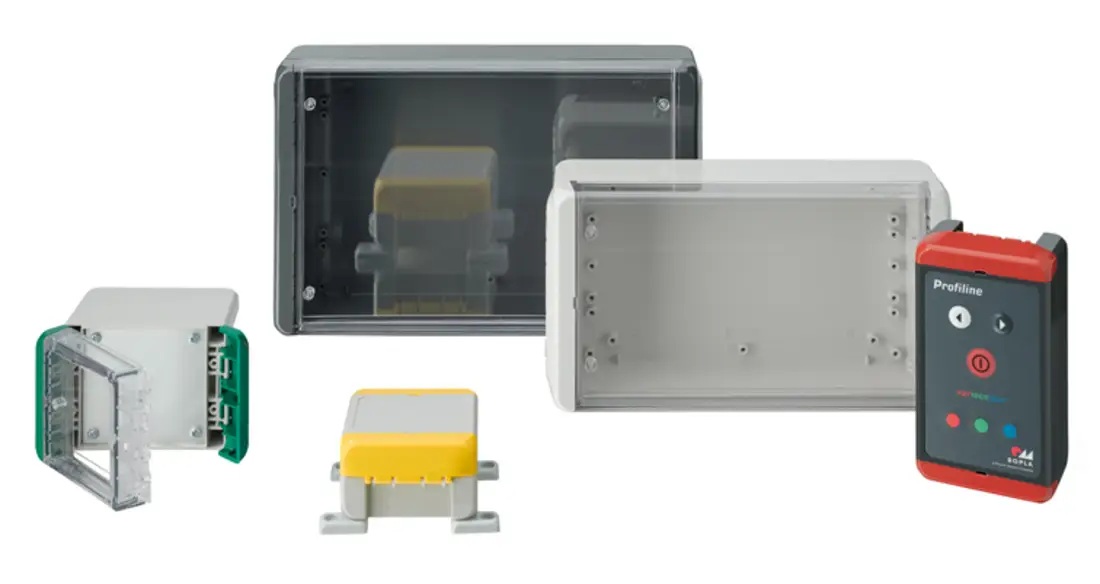

Bocube – plastic enclosure (ABS / PC)

The Bocube plastic enclosure from BOPLA is a flexible, lightweight, and easy-to-install enclosure designed for demanding indoor and outdoor applications. Its modern design and smart access features make it ideal for professional electronics installations.

Key features & benefits

• Flexible, lightweight design for fast and simple installation

• Patented hinge system for quick, tool-free opening

• Reversible lid – can be opened in any direction thanks to the rotating hinge

• Ingress protection: IP66 / IP68 (1.2 m immersion for 2 hours) according to DIN EN 60529

• Material: ABS or polycarbonate (PC), UL 94 V-0 flame rating

• Outdoor suitable: Certified to UL 746C, f1 rating

• Colours: Light grey (≈ RAL 7035), graphite grey (≈ RAL 7024)

Typical applications

Outdoor electronics, sensors, control systems, communication equipment, and IoT solutions.

Looking for a robust, IP-rated plastic enclosure with smart access and a clean, modern design? The BOPLA Bocube is a proven choice for reliable electronics protection in harsh environments.

Bocube Alu – die-cast aluminium enclosure

The Bocube Alu from BOPLA is designed for extremely harsh environments where maximum mechanical strength, sealing performance, and a premium appearance are required.

Key features & benefits

• Premium aluminium enclosure for demanding industrial applications

• Modern design that sets a new benchmark for aluminium enclosures

• Reliable protection for sensitive electronics in very harsh environments

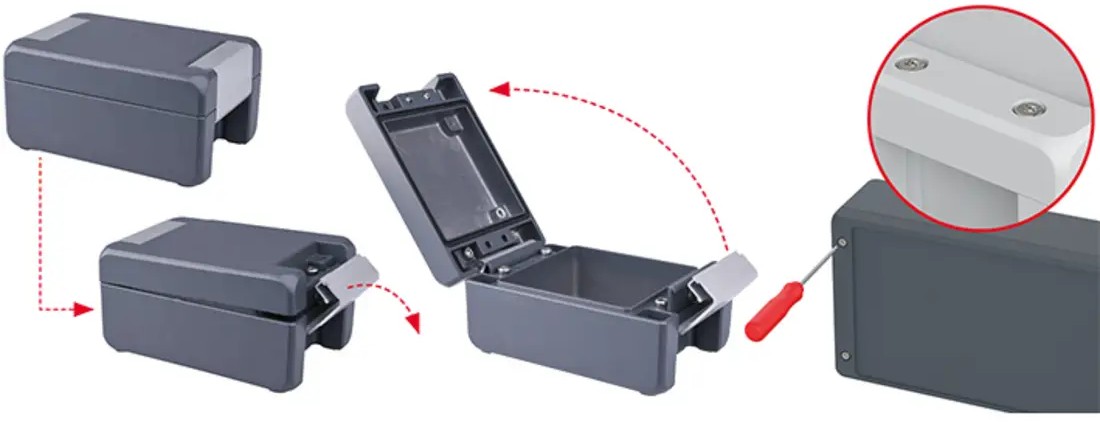

• Integrated hinge for easy servicing and protected cable routing

• Ingress protection: IP66 / IP68 (1.2 m immersion for 2 hours) / IP69

• IP69 achieved with only two lid screws, concealed beneath the design cover

• Material: Die-cast aluminium (GD Al Si 12)

• PU-foamed gasket for long-term sealing performance

Variants

• Also available as a screw-fastened version without hinge

Typical applications
Industrial equipment, infrastructure, transportation, wash-down environments, and demanding outdoor installations.

Looking for an IP69-rated aluminium enclosure with smart access and a premium design? Bocube Alu delivers maximum protection where reliability is critical.

Advantages of the Bocube family from BOPLA

Fast installation and easy service

Well-engineered hinge solutions make installation, servicing, and maintenance of Bocube enclosures quick and efficient—even for field installations. This saves time, reduces downtime, and simplifies future maintenance.

Clean, professional industrial design

The Bocube family combines functionality with modern design for a premium overall appearance:

• Bocube (plastic enclosure): Locks and mounting elements conceal screws in screw-fastened versions

• Bocube Alu (aluminium enclosure): Screws are completely hidden beneath elegant design covers

The result is a robust electronics enclosure with a clean, modern look—ideal for visible installations.

Designed for demanding environments

Bocube and Bocube Alu are developed for real-world industrial and outdoor applications:

• Prepared for pressure equalization membranes to enhance operational reliability

• Wide range of mounting options: wall, pole/mast, and DIN rail

• Generous internal space for PCBs, panels, and internal components

A flexible, future-proof enclosure solution for industry, automation, and electronics—engineered for reliability in harsh environments.

Application examples for BOPLA Bocube & Bocube Alu

BOPLA Bocube and Bocube Alu are used across a wide range of applications where electronics must be protected against moisture, dust, vibration, and harsh environmental conditions. These enclosures are designed for both industrial and outdoor installations, meeting high requirements for IP protection, operational reliability, and professional design.

Typical applications for the Bocube family

• Industrial control and regulation units

• Sensor and measurement systems for automation and IoT

• Outdoor electronics for infrastructure and energy applications

• Machine control and process automation

• Communication and industrial networking solutions

• Applications requiring robust enclosures and long service life

With a choice between durable plastic (Bocube) and die-cast aluminium (Bocube Alu), the enclosure can be precisely matched to the application’s environmental demands, mechanical loads, and aesthetic requirements—ensuring reliable protection and a future-proof solution for demanding electronics.

Sizes

Bocube (plastic)

BOPLA Bocube is available in a wide range of sizes—from compact enclosures to larger formats—with multiple height options depending on the model. This flexibility makes it easy to match the enclosure to your PCB layout, connectors, and mounting needs.

Bocube Alu (aluminium)

Bocube Alu is available in 10 standard sizes, ranging from approximately 121 × 86 mm up to 299 × 173 mm, with typical heights of around 60 or 90 mm depending on the version—ideal for applications requiring higher mechanical strength and IP-rated protection.

ETM4U helps you select the right enclosure size based on your electronics, interfaces, and mounting requirements—ensuring an optimal, production-ready solution.

FAQ

Which IP ratings are available?

• Bocube: IP66 / IP68 (1.2 m immersion for 2 hours)

• Bocube Alu: IP66 / IP68 (1.2 m immersion for 2 hours) / IP69

Which materials are used?

• Bocube: ABS or polycarbonate (PC), UL 94 V-0

• Bocube Alu: Die-cast aluminium

Can the enclosures be customized?

Yes. ETM4U supports customization including machining, cut-outs, accessory assembly, and expert guidance for design-in, prototyping, and series production—in close cooperation with BOPLA.

Accessories & add-ons

Common accessories (both series)

• Wall mounting brackets

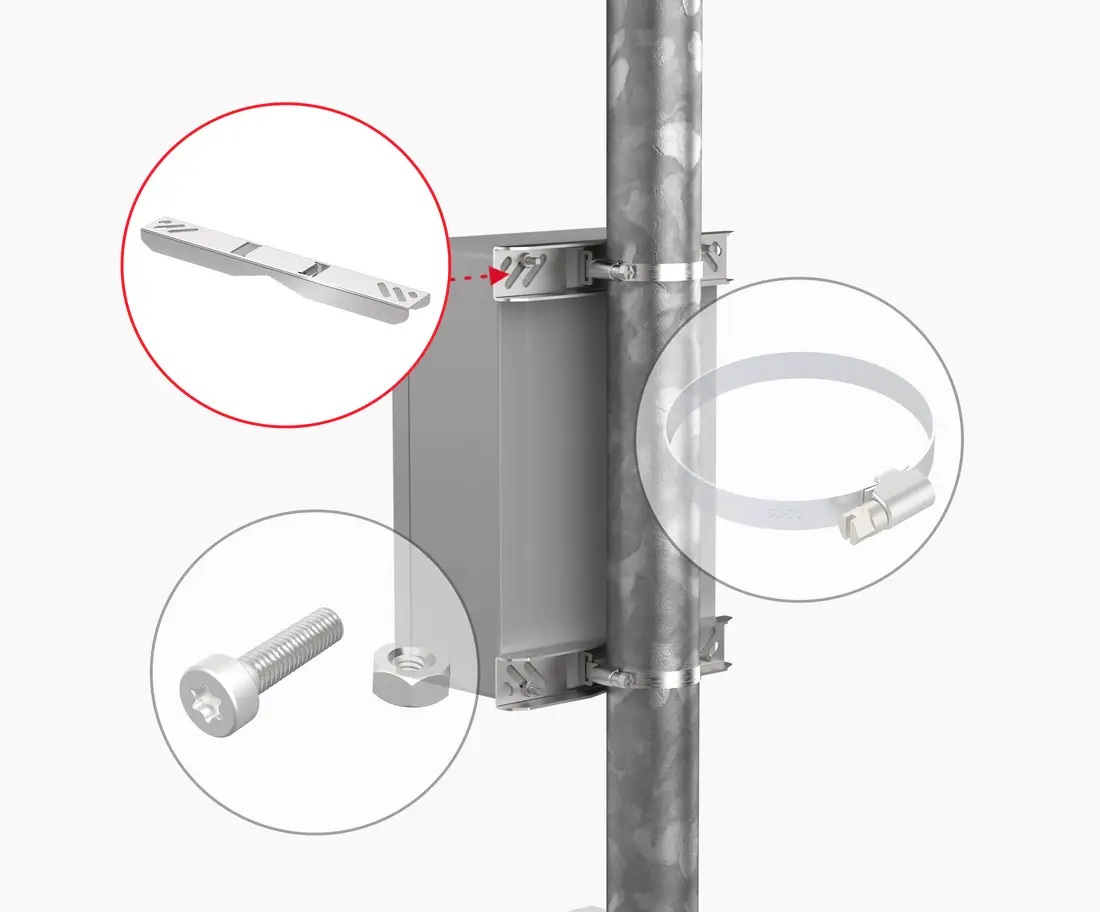

• Pole/mast mounting brackets (stainless steel)

• DIN rails (TH 15 / TH 35 / G 32)

• Pressure equalization membranes

Additional accessories for Bocube Alu

• Handles

• Quick-release locks

• Mounting plates

• Internal wall mounting brackets

Typical applications

• Outdoor electronics

• Industrial control and monitoring systems

• Sensor and gateway solutions

• Applications where design, IP rating, and operational reliability are critical

For accessory selection and integration, ETM4U provides expert advice to ensure the enclosure is perfectly configured for your application—today and in the future.
