BINDER INDUSTRIAL CONNECTORS, FLUSH-MOUNTED AND CABLE CONNECTORS

WHO ARE BINDER?

binder is a global and traditional family business. The company with approx. 2000 employees has its headquarters in Neckarsulm and is one of the world's leading specialists in round connectors with headquarters in Neckarsulm. binder Group includes the binder headquarters, new international and globally active distribution branches, seven manufacturing facilities, two system suppliers and an innovation and technology center.

binder manufactures versatile industrial connectors as well as built-in and cable connectors in the field of automation technology. The company's strengths lie in individual development, design and automated manufacturing of connectors according to the customer's wishes.

The binder product range extends all the way from miniature connectors to multi-pole machine connectors. binder's products are used in agricultural machinery, construction machinery and signaling systems, in the manufacture of machines, in medical technology and in sensor and automation technology.

binder - your specialist in circular connectors with the right connectors for every application:

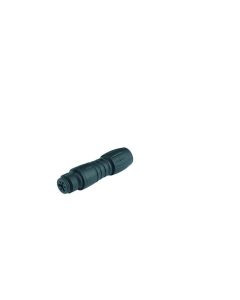

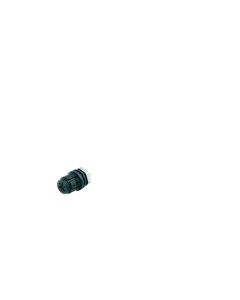

Subminiature connectors

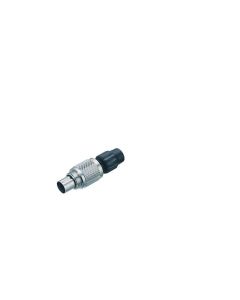

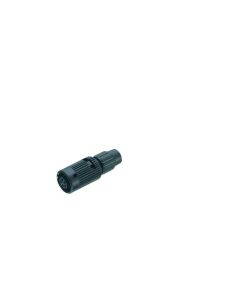

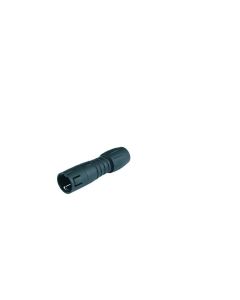

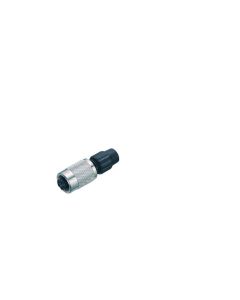

Our subminiature circular connectors are designed for the many applications where size and signal integrity are important. We offer models with snap, bayonet and push-pull locking, as well as M9 screw locking in two different versions, either IP40 or IP67. The connectors are available with two to eight contacts, in straight or angled versions and as flange connectors. The different models have a dip solder or solder connection and are available with moulded cables in different lengths. We use high-quality materials for the production of our circular connectors. The housing and contact bodies are made of PUR or PVC, the contacts are made of gold-plated bronze or gold-plated brass. There are seven different series available, which convince with the following advantages:

• Choice of locking mechanism
• Protection class IP40 or IP67
• 2 to 8 poles
• Straight and angled versions
• Up to 1,000 mating cycles

Miniature connectors

These seven series of miniature circular connectors are suitable for a wide range of applications thanks to a wide choice of locking systems, contact arrangements, IP protection classes and connections. Customers can choose between push-pull, snap-in, bayonet and M16 locking. Depending on the series, connectors with 2 to 24 contacts are available in cable or flange versions. Connection types are crimp, dip solder, screw clamp and solder connections, stranded wires and moulded cable. Like all products from binder, these miniature connectors are manufactured from high-quality materials for a long and reliable service life. Many are UL and VDE approved, some are ASIG compliant.

Features:

• Protection class IP40, IP67, IP67 shielded or IP68
• 2 to 24 poles
• Straight and angled cable versions
• Flange versions
• Gold or silver plated brass and bronze contacts
• 1000 mating cycles and more
• Multiple locking systems including bayonet, snap-in and M16

Power connector

Our range of power connectors is suitable for virtually any low and high voltage application, from security and CCTV systems to fieldbus Ethernet components and AC and DC motors. Some models meet the requirements of the most extreme environments - both indoor and outdoor. Various connection options are available, and bayonet, M25 and RD24 locking systems are available. Some models are ESTI+, UL and VDE approved. To expand the range of applications, users can choose between straight and right-angled cable and flange versions.

Features:

• 3 to 24 contacts, also with +PE
• Protection class from IP40 to IP69K
• UL, VDE and ESTI+ approval
• Cable and flange formats
• Solder, screw terminal, crimp connection and molded cable
• Shieldable versions

Connectors for medical applications

For the highly sensitive environment of "Health Care", in addition to the ELC Series 570 with its unique snap-in locking system, we also offer medical-grade versions of three of our industrial snap-in and bayonet connector systems. All four series are grey-white as standard, but other colours can be ordered. Two series have more than 500 mating cycles, two have more than 5,000, which is very important especially in this field. All four series are made of high-quality materials and offer the quality and reliability required in the medical field.

Features:

• Snap-in and bayonet locking.
• Up to 5,000 mating cycles
• IP54 and IP67
• 3 to 12 poles
• Solder and dip solder connections
• High quality materials
• ISO 13485 certified company
• Clearance and creepage distances available on request
• Disinfectant resistance (see brochure connectors for medical applications)
• Biocompatibility (DIN EN ISO 10993-5)
• FDA-compliant for aqueous foodstuffs according to regulation EG596/2009
• DEHP-free (except contacts)
• DIN EN 60601-11 Shock and vibration test
• DIN EN 60601-1 Drop test

Automation technology - sensors and actuators

These connector systems offer the perfect solution for sensors and actuators in many branches of industry. We offer connectors from IP40 to IP69K, many with UL, VDE and Ecolab approval, as well as FDA compliant models. Users can order circular connectors with 2 to 12 contacts and various termination options, including solder, crimp, dip solder, cable and stranded wire termination. Connectors with M5, M8 and M12 screw locking are available in straight and angled and flanged versions. In addition to duo connectors and dual distributors, a wide range of connecting cables is also available.

Features:

• 2 to 12 poles
• IP40 to IP69K
• Screw lock
• Easy installation
• UL, VDE and Ecolab approval
• Connecting lines
• FDA compliant designs

Automation technology - data transmission

binder offers 7 different circular connectors for signal and data transmission in modern, automated factories. These are mainly M8, M12, M16 circular connectors that can be configured by the customer to suit the respective application. For data transmission, our latest shielded, X-coded M12 connector can handle data transfer rates up to an impressive 10 Gbit/s.

Features:

• 6 product series
• Various locking systems, including M8, M12 and M16
• Coding, including M12 - B, -D and -X
• Protection class from IP20 to IP69K
• 2 to 8 contacts
• Shielded and shieldable
• PUR- and PVC cables
• Cable lengths from 0.5 m to 10 m

Automation technology - voltage and power supply


The connectors for voltage and power supply are used to supply AC motors, drives and motor switches with high voltages over longer periods of time, but also for low-voltage applications such as fieldbus Ethernet components and network devices. These are mainly M12, M18 and 7/8 inch circular connectors, which can be configured by the customer to suit the particular application. The M12 connectors with K and S coding can be used up to a rated voltage of 630V AC.

Features:

• 8 product series
• Various locking systems, including M12, M18 and 7/8".
• Different coding, including M12 - S, -K, -T, -L and -US
• Protection class from IP40 to IP69K
• 2 to 5 contacts, including 2+PE, 3+PE and 4+PE
• Shielded and shieldable
• PUR and PVC overmoulding
• Cable lengths from 0.5 m to 10 m

Solenoid valve connectors - Automation technology

Our connectors for state-of-the-art automation applications include a series of solenoid valve connectors. They comply with design A according to DIN EN 175301-803 (formerly DIN 43650) and have 2+PE and 3+PE contacts. Depending on the design, they have protection class IP 40 to 67 and are available as self-connectable and moulded versions. For visual status indication, many models are also available as LED variants. Your devices can be protected against electrical voltage peaks by an optional protective circuit inside the solenoid valve connector.

Features:

• Type A according to industrial standard
• Complies with DIN EN 175301-803
• Version with high housing available
• Appliance sockets and plugs
• PUR-moulded sockets (IP67)
• Available with LED indicators
• UL and VDE approval

LED industrial luminaires





LED Light
• Three different light lengths
• Degree of protection IP69K 1)
• Quick fitting
• Easy installation kit
• More accessories upon request

Termination System
• M12 A-coded
• Field-wireable female cable connector
• Screw clamp termination
• Moulded female cable connector
• 4 contacts

EXPERT

As specialist for circular connectors, our strengths lie in development, design and automated manufacturing.

LARGE PRODUCT SELECTION

Our large product selection of circular connectors ranges from miniature connectors to multi-pin power connectors. The use of binder connectors includes applications for the measuring and control technology and automation.

RELIABILITY, QUALITY, RESPONSIBILITY

binder is a traditional company characterized by values that stand for absolute reliability towards customers, employees and service providers. Our daily operations are thereby governed by quality. We take responsibility for our employees and communicate on par.
