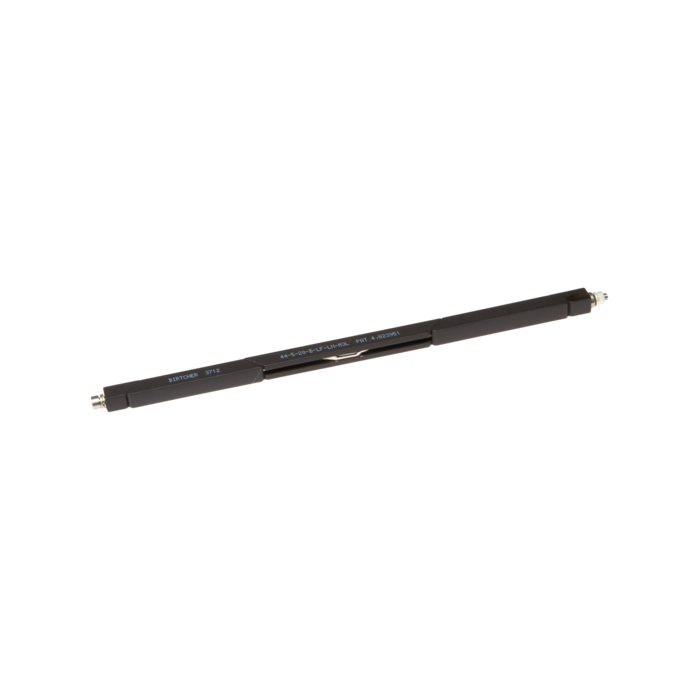

44-5 Wedge-Lok

nVent Schroff, The Series 44-5 features a larger profile design and is better suited to accommodate heavier Board Module Assemblies and a higher level of thermal transfer Profile 9.53 mm x 9.53 mm DSCC CID 59789 Flexible mounting options Weight 2.79 g/cm Max expansion 11.90 mm 5 segment, non-shafted design Length 127.0 mm to 304.8 mm, 12.7 mm increments Available with gold chem film, clear chem film, black anodized, hard black anodized, or electroless nickel plating For cold wall applications Average clamp force (5", black anodized) = 801 lbs Torque limiting option available; ideal for 2nd level maintenance Screw actuated
