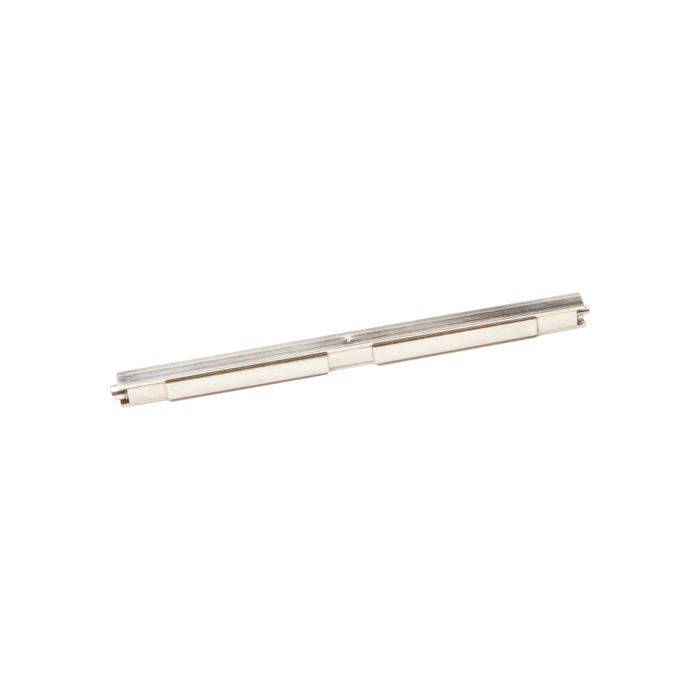

48-5 Wedge-Lok

nVent Schroff, The Series 48-5 features a U-shaped channel design to ensure even distribution of force across the board module assembly and facilitate in thermal transfer. Length 76.2 mm to 279.4 mm 12.7 mm increments 5 segment, shafted design Flexible mounting options Profile 7.60 mm x 6.35 mm Available with gold chem film, clear chem film, black anodized, hard black anodized, or electroless nickel plating Screw actuated Max expansion 8.13 mm Weight 1.42 g/cm For cold wall applications Average clamp force (5", black anodized) = 333 lbs Torque limiting option available; ideal for 2nd level maintenance
