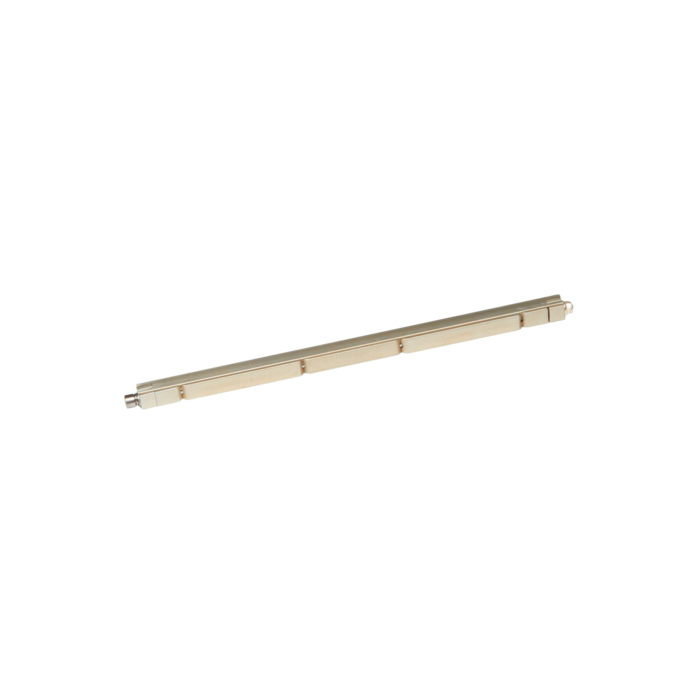

48SL Wedge-Lok

nVent Schroff, The Series 48SL features a U-shaped channel design to ensure even distribution of force across the board module assembly and facilitate in thermal transfer. Weight 1.28 g/cm Max expansion 8.26 mm Available with gold chem film, clear chem film, black anodized, hard black anodized, or electroless nickel plating Flexible mounting options Profile 6.35 mm x 6.60 mm 5 segment, shafted design Screw actuated Length 127.0 mm to 304.8 mm, 12.7 mm increments For cold wall applications Average clamp force (5", black anodized) = 503 lbs
