VARISTAR CP 42U 600W 800D EMC MIL-STD901

€11,877.00
art.nr
10630-049

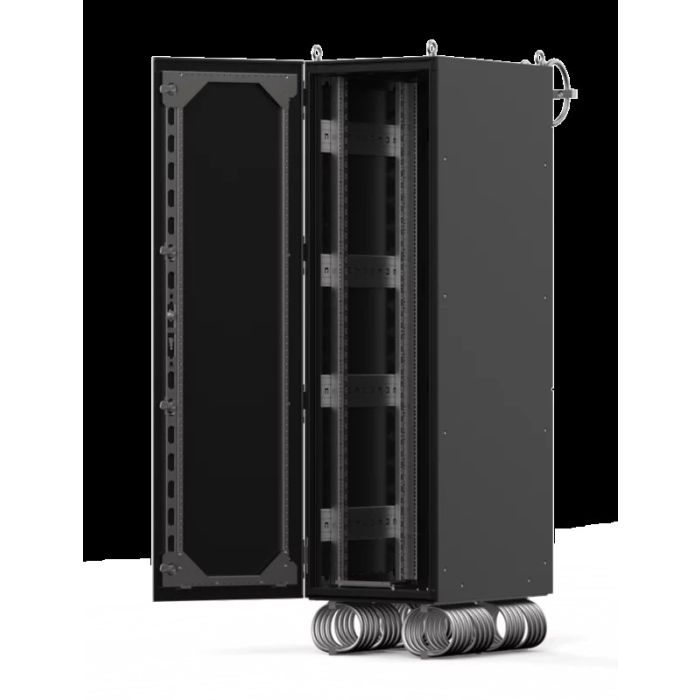

Varistar CP MIL 901E Cabinet, Military Certified for Shock, Vibration, EMC, and Corrosion 2000H 600W 800D

Varistar CP MIL 901E Cabinet, Military Certified for Shock, Vibration, EMC, and Corrosion

  • NTS tested to MIL-DTL-901E for DSSM drop table IF EXISTS test with weight loading of 460 KGs
  • NTS tested to Test Procedure TP-PR168728-00 for EMI Shielding - Complies with MIL-STD-461G
  • NTS tested to Mil-STD-810H for Corrosion Resistance
  • NTS tested to Mil-STD- 167-1A for vibration
  • Doubly protected against corrosion, zinc-plated and powder-coated
  • 4 shock absorbers at bottom and 2 shock absorbers at top
  • Rear panel horizontally partitioned in 3 parts - Top cover plate covering the shock absorber fixing area, Bottom cover plate for cable ducting, Middle rear panel closing the gap between the cover plates
  • EMC Bottom plate adapted with through holes to connect the shock absorbers directly to the frame
More Information
art.nr 10630-049
Weight in kg 240.000000
Country of origin France
Manufacturer Schroff
Normal Delivery time 2-3 weeks
Material Lakkert Stål
IP class IP55
Height in U 38
Width in mm 600
Height in mm 2000
Depth in mm 800
Customs no. 85381000
Product homepage click here
Manufacturer's part.nr 10630-049
Static Load in kg 1600
Frame material Steel
Frame / Cladding Color RAL 7021 / RAL 7021
Complies with IEC 60529
Color RAL7021
