Plastic enclosure, 02210100

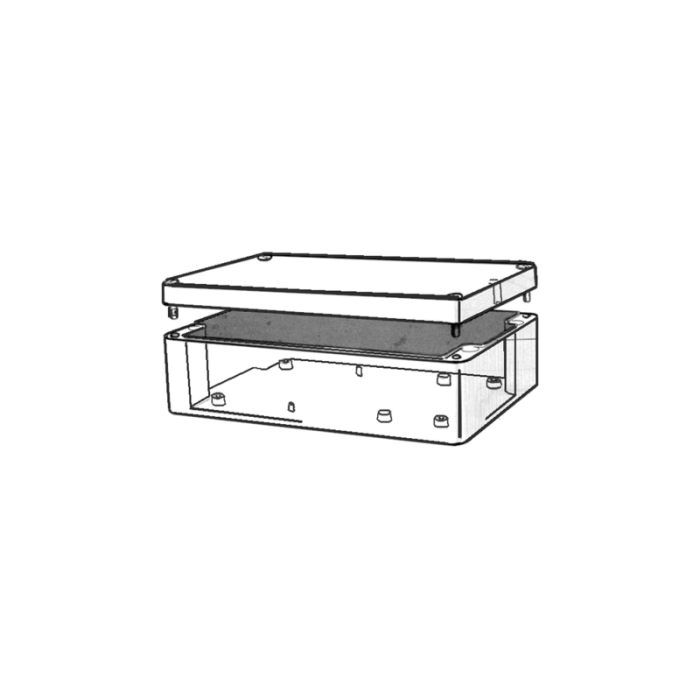

Plastic enclosures, type Multi-Box/Bopla/Rose. Made of ABS or polycarbonate PC (macrolon), sealed with tongue-and-groove system (encircling PUR or CR round seal in the lid grooves). Lid and base shell joined with captive stainless steel lid screws. Screw channels in a recess outside of the sealed compartment. With mounting pedestals in the base for easy installation of mounting rails, switching elements, terminal blocks etc;Degree of protection to DIN 40050: IP 65. Operating temperature ABS/PC: –40 to +80 °C/ –40 to +100 °C. Combustibility to UL 94 ABS/PC: HB/V 2. Dielectric strength ABS/PC: 24/30 kV. Color: light-gray RAL 7035. Design: polycarbonate/macrolon, with clear lid. Technical attributes - (type, outer dimension, lid height (LH)): 02210100, W 80, L 82, H 55 mm, LH 14.5
